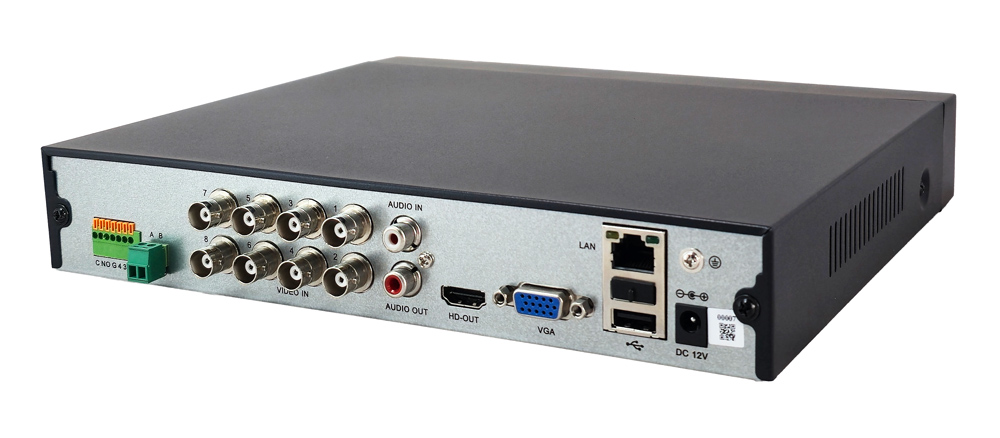

LONGSE XVR υβριδικό καταγραφικό XVR5008C1P, 8MP H.265/H.264, 8 καναλιών

LONGSE XVR υβριδικό καταγραφικό XVR5008C1P, 8MP H.265/H.264, 8 καναλιών

Υβριδικό XVR καταγραφικό 5 σε 1 (AHD, CVI, TVI, IP, Analog) της Longse, με υποστήριξη έως 8 αναλογικών καναλιών ή 16 δικτυακών καναλιών. Υποστηρίζει ανάλυση καταγραφής έως 8MP.
Τα καταγραφικά της Longse αποτελούν προϊόντα τεχνολογικής αιχμής, κατασκευάζονται από ποιοτικά υλικά και με αυστηρά κριτήρια ποιότητας, ώστε να λειτουργούν αξιόπιστα και απροβλημάτιστα, προσφέροντας σιγουριά και ασφάλεια.

Σημεία ενδιαφέροντος προϊόντος
-υποστήριξη έως 8 αναλογικών καναλιών
-υποστήριξη έως 16 δικτυακών καναλιών
-υποστήριξη ανάλυσης έως 8MP
-H.265/H.264 video compression
-υποστήριξη απομακρυσμένου ελέγχου μέσω smartphone
-υποστήριξη σκληρού δίσκου με χωρητικότητα έως 8TB
-ελληνικό μενού

Συμβατές εφαρμογές:

Android
https://play.google.com/store/apps/details/BitVision?id=com.gzch.lsplat.lsbtvapp&hl=el

IOS
https://apps.apple.com/us/app/bitvision/id1419463554

PC
http://www.herospeed.net/en/index.php?m=content&c=index&a=lists&catid=10

WEB Browser
www.bitvision.app

Τεχνικά χαρακτηριστικά
System
-Main Processor: MC6650
-Operating System: Embedded LINUX

Video
Input:
-Normal Mode: Default: 8x AHD/TVI/CVI: 8MP; TVI/AHD: 5MP; AHD/TVI/CVI: 4MP; AHD/TVI: 3MP; AHD/TVI/CVI:1080P/720P; Analog: 960H + 4x network(Max 8MP), Analog+Network: 6x Analog(8MP) + 8x network (Max 8MP), 4x Analog(8MP) + 10x network(Max 8MP), 2x Analog(8MP) + 12x network(Max 8MP)
LITE Mode: Default: 8x (TVI/AHD:5M @12fps; AHD/TVI/CVI: 4M @15fps; AHD/TVI/CVI: 1080P/720P; Analog: 960H + 4x network(Max 8MP), Analog+Network: 6x Analog(5M @12fps) + 8x network(Max 8MP), 4x Analog(5M @12fps) + 10x network(Max 8MP), 2x Analog(5M @12fps) + 12x network (Max 8MP)
Network: 16x 8MP/5MP/4MP/3MP/1080P/960P/720P (Total incoming bandwidth </=80M)
-Input: 8CH BNC
-Signal Type: Analog/AHD/CVI/TVI 2.0/TVI 3.0/Network
-Output: 1HD, 1 VGA

Audio
-Input: 1 Channel RCA, support AOC
-Two-way Audio: No
-Output: 1 Channel RCA

Alarm
-Sensor Input: 4
-Output: 1
-Motion Detection: 12 Channel (max 16 Channel in pure network mode)
-Trigger Events: Recording, Email, Screen tips, Buzzer, Push notifications(motion detection)
-Email Alarm: Send Image to The Designated E-mail

AI Function
-Human Detection: Yes

PTZ
-Interface: RS485
-Protocol: Pelco-D, Pelco-P
-Baud Rate: 110~921600
-Address: 0~255

Display
-VGA: Resolution: 1920 x 1080P, 1280 x 1024, 1280 x 720, 1024 x 768
-HD Output: Resolution: 3840×2160 1920×1080 1280×1024 1280×720 1024×768
-Display Split: 1/4/8/9/16
-Privacy Masking: 3 Rectangular Zones (Each camera)
-OSD: Camera title, Time, Video loss, Alarm, Motion detection, Recording

Recording
-Video Compression: H.265/H.265+/H.264/H.264+
-Audio Compression: G.711U/G.711A
-Resolution: 5MP, 8MP_LITE, 5MP_LITE, 4MP, 4MP_LITE, 3MP, 3MP_LITE, 1080P, 720P, 960H
-Video Quality: Lowest/Low/Ordinary/Good/Better/Best
-Record Rate:
Normal Mode: Analog: PAL: 8MP_LITE(8x8fps), 5MP(8x6fps), 5MP_LITE(8x10fps), 4MP(8x8fps), 4MP_LITE(8x15fps), 3MP(8x9fps), 3MP_LITE(8x18fps), 1080P(8x15fps), 720P(8x25fps), 960H(8x25fps), NTSC: 8MP_LITE(8x8fps), 5MP(8x6fps), 5MP_LITE(8x10fps), 4MP(8x8fps), 4MP_LITE(8x15fps), 3MP(8x9fps), 3MP_LITE(8x18fps), 1080P(8x15fps), 720P(8x30fps), 960H(8x30fps)
LITE Mode: PAL: 5MP_LITE(8x10fps), 4MP_LITE(8x15fps), 3MP_LITE(8x18fps), 1080N(8x25fps), 720P(8x25fps), 960H(8x25fps), NTSC: 5MP_LITE(8x10fps), 4MP_LITE(8x15fps), 3MP_LITE(8x18fps), 1080N(8x25fps), 720P(8x25fps), 960H(8x30fps)
Pure IP (H.265): PAL: 8MP @9x25fps, 5MP @12x25fps,4MP @16x25fps, 3MP @16x25fps, 1080P @16x25fps, 960P @16x25fps, 720P @16x25fps, D1 @16x25fps, NTSC: 8MP @9x30fp, 5MP @12x30fps,4MP @16x30fps, 3MP @16x30fps, 1080P @16x30fps, 960P @16x30fps, 720P @16x30fps, D1 @16x30fps
-Record Mode: NormalMotion DetectionAlarmIntelligent

Playback & Backup
-Decode Capability: 4x 1080P @30fps
-Sync Playback:
Normal Mode: Pure Analog: 8CH 5M @6fps, 7CH 8M_LITE @8fps, 8CH 4M @8fps, 8CH 3M @9fps, 8CH 1080P @15fps, Mix Mode: 4CH 5M @6fps, 4CH 4M @8fps, 4CH 3M @9fps, 4CH 1080P @15fps, 1CH 8MP 30fps, 2CH 5MP 30fps, 2CH 4MP @30fps, 2CH 3MP @30fps, Pure IPC: 1CH 4K @30fps, 2CH 5MP @30fps, 3CH 4MP @30fps, 4CH 3M @30fps, 4CH 1080P @30fps, 4CH 960P @30fps, 4CH 720P @30fps
LITE Mode: Pure Analog: 8CH 5M_LITE @8CH 1080N @25fps, 8CH 720P @25fps, 8CH 960H @25fps, Mix Mode: 4CH 5M @6fps, 4CH 4M @8fps, 4CH 3M @9fps, 4CH 1080P @15fps, 1CH 8MP 30fps, 2CH 5MP 30fps, 2CH 4MP @30fps, 2CH 3MP @30fps, Pure IPC: 1CH 4K @30fps, 2CH 5MP @30fps, 3CH 4MP @30fps, 4CH 3M @30fps, 4CH 1080P @30fps, 4CH 960P @30fps, 4CH 720P @30fps
-Remote Playback: 4 Channel / 1 Channel
-Search Mode: ALL, Channel, Manual, Time, Date, Motion Detection, Alarm,Tag
-Playback Functions: Play, Pause, Stop, Fast play, Slow play, Rewind, Single frame forward/back, Digital Zoom, Full screen
-Smartphone Playback: 4 Channel
-Backup Mode: USB Device (with fomat FAT 32)/Network/FTP

Network
-Interface: 1 RJ45 10M/100M Adaptive Ethernet Interface
-Network Functions: TCP/IP, IPv4/IPv6, HTTP, UPnP, DNS, NTP, SMTP, DHCP, FTP, DDNS, RTP, RTSP
-DDNS: Dyndns, changeip, no-ip, Oray, A-PRESS, MYQSEE, SKDDNS, SMART-EYES, ZEBEYE, HDPROVN, DYNAMIC_PLANET, EASY_PLANET
-Web Browser: Edge, Google Chrome , Firefox ,Safari
-CMS Software: Support Windows 10/Windows 11/MAC OS
-Extra Stream: CIF (1-30fps)/D1 (1-15fps)
-Smartphone: iPhone, Android

Hard Disk Driver
-Interface Type: 1 SATA Interface
-Capacity: 1 SATA Hard Disk (2.5″/3.5″ SATA, Up to 8TB)

General
-Language: Chinese, English, Polish, Czech, Thai, Hebrew, Arabic, Bulgarian, Japanese,German, French, Portuguese, Turkic, Spanish, Italian, Hungarian, Romanian, Korean, Dutch, Greek, Vietnamese, Ukrainian
-UTC Control: Yes
-USB Interface: 2 USB 2.0 Interfaces
-Power consumption: DC 12V/2A </= 7W (without HDD)
-Working Environment: -10~55 °C/10~90%
-Dimension (WxDxH): 260x230x43(mm)
-Weight: 1.2kg (Without HDD)

Περιεχόμενα συσκευασίας
-XVR καταγραφικό
-Ενσύρματο ποντίκι
-Τροφοδοτικό
-Βίδες
-Εγχειρίδιο χρήσης
