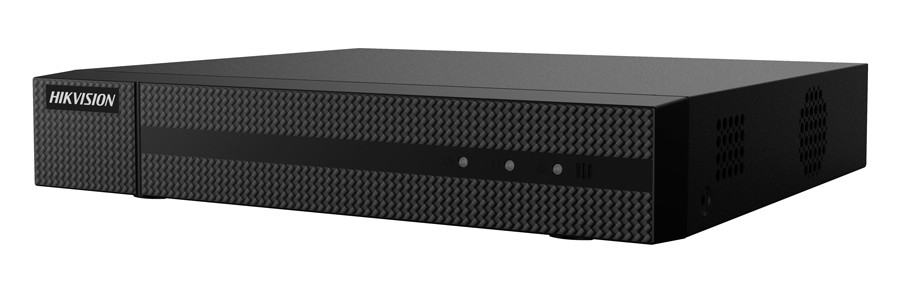

HIKVISION HIWATCH NVR καταγραφικό HWN-2104MH-4P, H.265+, 4 κανάλια PoE

HIKVISION HIWATCH NVR καταγραφικό HWN-2104MH-4P, H.265+, 4 κανάλια PoE

Καταγραφικό NVR της σειράς HiWatch από την HIKVISION. Υποστηρίζει έως και 4 κανάλια PoE δικτυακών IP καμερών με ανάλυση εγγραφής έως 4MP και κωδικοποίηση βίντεο H.265+. Επιπλέον υποστηρίζει HDD έως 6ΤΒ.

-H.265+/H.265/H.264+/H.264 video compression
-Up to 40Mbps incoming bandwidth and 60 Mbps outgoing bandwidth
-Up to 4-ch network camera inputs
-Up to 4-ch 1080p decoding capability
-2-ch at 4MP or 4-ch at 1080p playback resolution
-HDMI and VGA simultaneous output
-1 SATA interface (up to 6 TB capacity per HDD)
-Supports line crossing and intrusion detection
-Smart search for the selected area in the video and smart playback to improve the playback efficiency
-Automatically search and add network cameras after device is activated
-4 independent PoE network interfaces
-1 self-adaptive 10/100 Mbps Ethernet interface
-Hik-connect P2P function for easy remote management
-Live view from smart device or Internet

Τεχνικά χαρακτηριστικά
IP video input: 4-ch, Up to 4 MP resolution
Incoming bandwidth: 40 Mbps
Outgoing bandwidth: 60 Mbps
HDMI output: 1-ch, 1920x1080p/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz
VGA output: 1-ch, 1920x1080p/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz
Video output mode: HDMI/VGA simultaneous output
Decoding format: H.265+/H.265/ H.264+/H.264
Recording resolution: 4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Synchronous playback: 4-ch
Remote connection: 16
Network protocol: TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP,UPnP™
Network interface: 1, RJ-45 10/100 Mbps self-adaptive Ethernet interface
POE Interface: 4, RJ-45 10/100 Mbps self-adaptive Ethernet interface
Power: 36 W
Supported standard: IEEE 802.3 af/at
SATA: 1 SATA interface
Capacity: Up to 6 TB capacity for each disk
Alarm in/out: N/A
USB interface: Rear panel: 2x USB 2.0
Power supply: 48 VDC
Consumption (without HDD): </= 10 W
Working temperature: -10°C to 55°C
Working humidity: 10% to 90%
Dimension (WxDxH): 265 x 225 x 48 mm
Weight (without HDD): 1 kg

Περιεχόμενα συσκευασίας
NVR καταγραφικό
Ενσύρματο ποντίκι
Τροφοδοτικό
Καλώδια σύνδεσης
Βίδες
Εγχειρίδιο χρήσης
