FOLKSAFE video and power receiver hub FS-HD4608VPS12, 8 channel

FOLKSAFE video and power receiver hub FS-HD4608VPS12, 8 channel

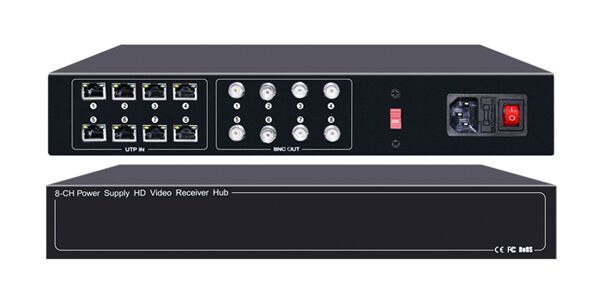

FS-HD4608VPS12 is a 8-channel video and power hybrid receiver that consolidates all CCTV system cabling using standard EIA/TIA 568A/B structured building wiring. Designed for installation in the IDF/Telecom Closet or MDF/Equipment Room,FS-HD4608VPS12 allows the real time transmission of CCTV Video signal via cost-effective Unshielded Twisted Paired (UTP) cable.

Baseband (composite) signals of any type are supported. Working with transmitter,it can transmit both video and power hybrid signal for 12VDC output camera.

The superior interference rejection and low emissions of the FS-HD4608VPS12 allows video and power signals to co-exist in various environment. Compared with traditional video receiver, FS-HD4608VPS12 greatly reduces the cost and improves the performance. Compared with other similar products, FOLKSAFE FS-HD4608VPS12 has higher performance, better stability, and more obvious price advantage.

-Real-time transmission over UTP cat5e/6
-Compatible with all HD-TVI/CVI/AHD/CVBS analog cameras
-Power up to 100m(328ft)with FS-HD4301VPT for 12VDC HD camera
-Provides camera power while receiving video signal
-Please refer to “Video Transmission Distance Chart” Part to find out distance of 720P/960P/1080P/3MP/4MP/5MP/4K cameras
-Female BNC connector and RJ45 Jack
-Full Channel Support UTC (Up to Coaxial Control) with high quality image
-Centralized power supply, reducing the use of engineering cables
-Exceptional interference rejection
-Built-in solid state TVS for surge protection & ground loop isolation
-Wave Filter Design, Anti-Static Design
-Lightning protection design Grade: ΙΙΙ
-Black galvanized housing
-Rack, wall mountable and desk installation with 4 rubber feet

Τεχνικά χαρακτηριστικά
Applied Devices: CCTV cameras, monitors, DVR, switchers, IP encoders, and other CCTV equipment
Video Format: HD-TVI/CVI/AHD/CVBS
Operating Frequency: DC to 71MHz
Common-mode/Differential-mode rejection: 15KHz to 71MHz 60 dB typ.
Video Impedance: Coax: Male BNC75Ω unbalanced, UTP: RJ45 Jack100Ω balanced
Attenuation: 0.5 dB typ.
Power Input: No external power required
Power Transmission: 12VDC max up to 328ft /100m over 3pairs of UTP cat5e/6
Power Consumption: 50W
Video Input: RJ45 Jack
Video Output: Female BNC connector
Dimensions(L*W*H): 300*261.2*67mm (BNC connector & mounting bracket excluded)
Net Weight: 4.5Kg

Wire Type:
Network Wiring: One Unshielded Twisted Pair (for each video signal) 24-16 AWG (0.5-1.31mm)
Category Type: 2 or better
Impedance: 100 ± 20 ohms
DC Loop Resistance: 52 ohms per 1,000ft (18 ohms per 100m)
Differential Capacitance: 19 pF/ft max (62 pF/m max)

Περιεχόμενα συσκευασίας
hub FS-HD4608VPS12
2x video & power balun
4x καλώδια BNC
καλώδιο τροφοδοσίας
